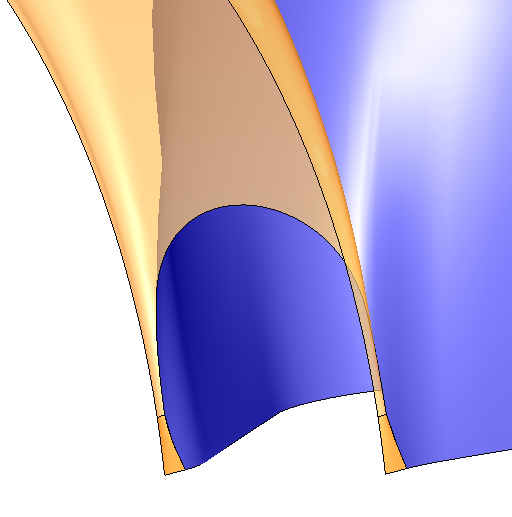

For sharp cut-water design the spiral and the diffuser are trimmed only at their intersection curve. The resulting geometry can be processed in the CAD system.
Prerequisites:
•The wrap angle must be high enough so that spiral and diffuser intersect.
|
