Animations

Animations are created from saved .sres files, The Result Saving Frequency option in the Simulation Panel is set to a small value (say 5 or 10) before running the simulation to obtain better animations. The steps for an animation are shown below:

1. Click Load Results in the Simulation Panel.
2. Select the required result file in the ensuing Load Results dialog box, click Open.

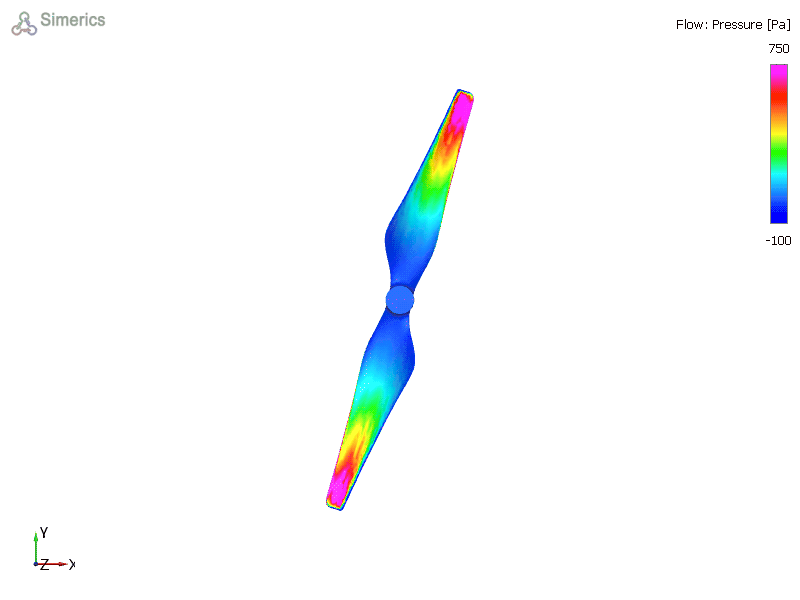

Pressure Distribution - Ffowcs-Williams Hawkings (FWH) Transient Model

1. Select propeller_ propeller from the Boundaries list in the Geometric Entities Panel.
2. Select Flow: Pressure for the Variable drop-down list in the Results Panel.

3. Specify Min as -100 and Max as 750 in the Results Panel.

4. Select File > Save Animation, to save animation.
5. Select the result files for animation data in the Select Result Files dialog box.
6. Under File name, give a suitable name for the .gif animation in the Select GIF File for Movie, PNG File for Frames dialog box.
