Problem Overview

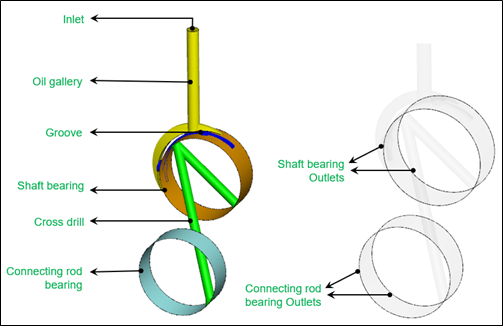

The bearing model consists of shaft bearing, connecting rod bearing, cross drill, oil gallery and groove. The oil enters the oil gallery at a pressure of 600000 Pa and leaves outlet at a pressure of 101325 Pa. The main bearing, cross drill and connecting rod bearing are operated at 4000 rpm. Figure 7.135 shows the geometry description and conditions for the bearing simulation.
