Computational domain

This section explains the CAD geometry considered for the simulation. It consists of car flow volume, windshield solid, and ice flow volume. The car geometry considered for the simulation is as shown in the Figure 7.267. Windshield and ice volumes are created during meshing using Template mesher.

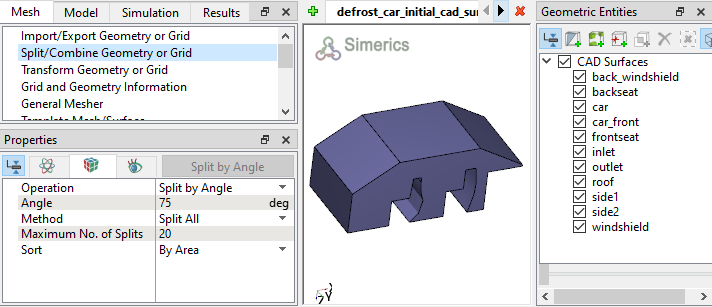

Figure 7.267 - CAD surfaces
