Problem Overview

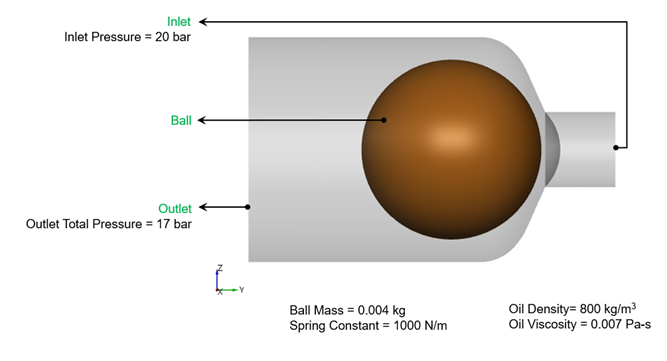

The ball 3D valve setup consists of a valve, operating with an inlet pressure of 20 bar and outlet pressure of 17 bar. Figure 6.635 shows the geometry and conditions for the ball 3D valve simulation.
