Animations

Animations are created from saved *.sres files, The Result Saving Frequency option in the Simulation Panel is set to a small value (say 5 or 10) before running the simulation to obtain better animations. The steps to create an animation are shown below:

Pressure distribution

1. Select Section 01 under Derived Surfaces in the Geometric Entities Panel.
2. Select Pressure under Variables for the Variable drop-down list in the Results Panel.
3. Specify Min as 101325 Pa and Max as 300000 Pa in the Results Panel.

4. Select File > Save Animation, to save animation.

5. Select the result files for animation data in the Select Result Files dialog box, click Open.

6. Under File name, give a suitable name for the .gif animation in the Select GIF File for Movie, PNG File for Frames dialog box, click Save.

Similarly, the animation can also be obtained for the velocity magnitude on the section as shown in Figure 6.634.

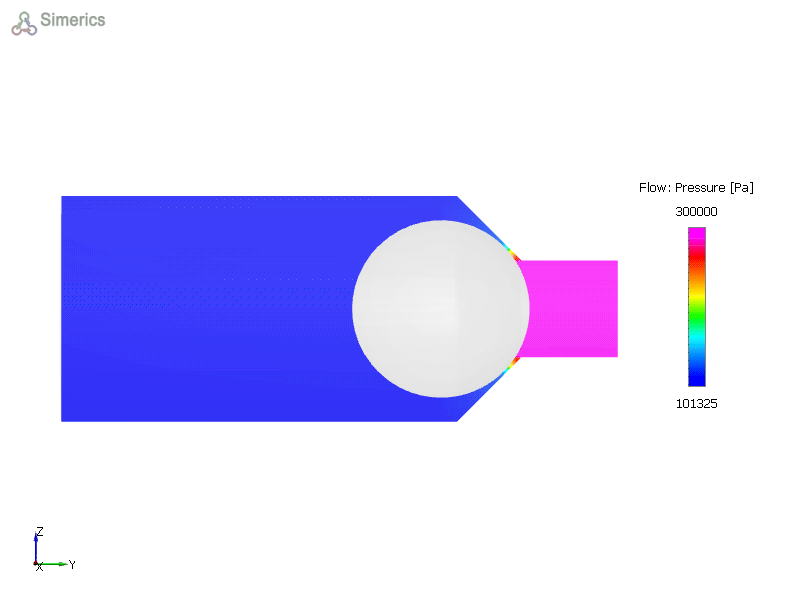

Figure 6.633 - Ball valve pressure animation

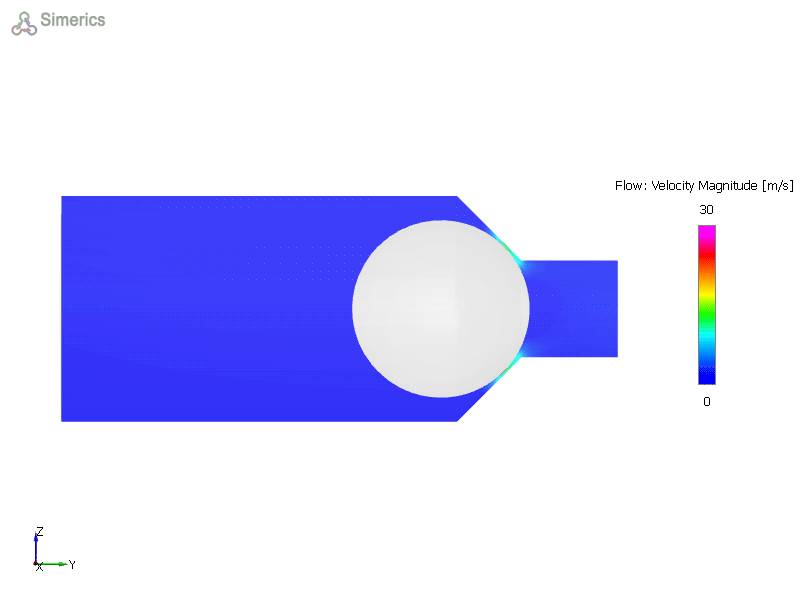

Figure 6.634 - Ball Valve velocity animation
