Problem Overview

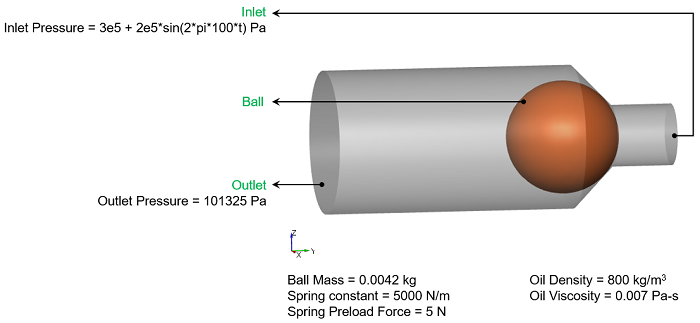

The ball valve setup consists of a valve, operating with an oscillating inlet pressure of amplitude 200000 Pa, with a peak-to-peak period of 0.01 seconds (frequency of 100 Hz). The pressure at the outlet is 101325 Pa. Figure 6.607 shows the geometry and conditions for the ball valve simulation.
