Animations

Animations are created from saved .sres files. The Result Saving Frequency option in the Simulation Panel is set to a small value (say 5 or 10) before running the simulation to obtain better animations. The steps for an animation are shown below:

1. Click Load Results in the Simulation Panel.
2. Select the required result file in the ensuing Load Results dialog box, click Open.

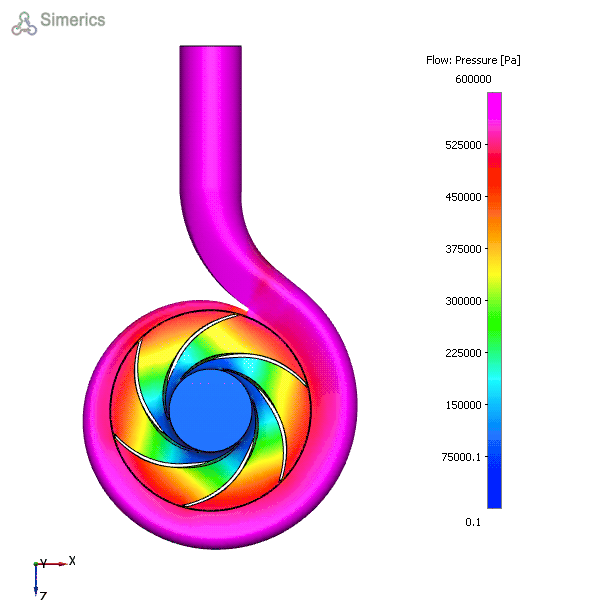

Pressure distribution - Transient Simulation

1. Select Volumes in the Geometric Entities Panel.

2. Select Flow: Pressure for the Variable drop-down list in the Results Panel.

3. Select File > Save Animation, to save animation.

4. Select the result files for animation data in the Select Result Files dialog box.

5. Under File name, give a suitable name for the .gif animation in the Select GIF File for Movie, PNG File for Frames dialog box.
