Problem Overview

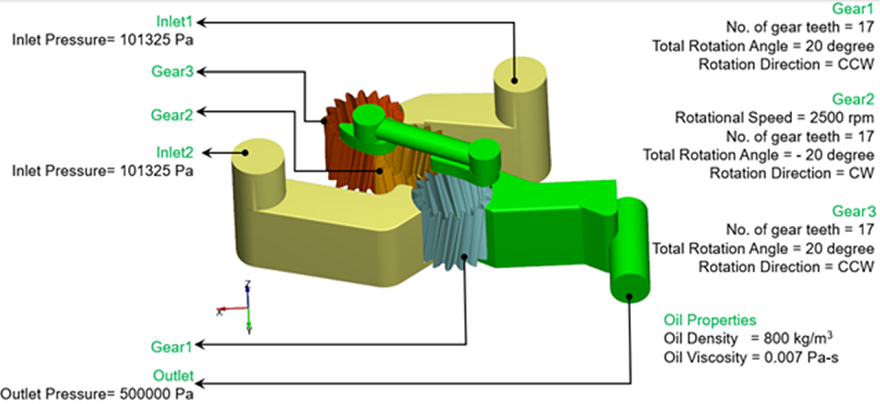

The Helical external gear pump consists of two Inlets, three Gears, and an Outlet. Oil enters the pump at a pressure of 101325 Pa and leaves at a pressure of 500000 Pa. The pump is operated at 2500 rpm. Figure 6.909 shows the geometry description and conditions for the helical gear pump simulation.

Figure 6.909 - Problem overview - Helical gear pump
