Contours

The most common contours for the radial piston pump simulation are the pressure, and the total gas volume fraction across the domain. The steps to create contours are:

1. Click Load Results in the Simulation Panel.
2. Select the required result file in the ensuring Load Results dialog box, click Open.

Pressure Contours

1. Select Volumes in the Geometric Entities Panel.
2. Select Pressure from the Variables drop-down list under Variable option in the Results Panel (see, Figure 6.395). For variables and legends refer, Post-Processing.

Total Gas Volume Fraction contours

This gives information about the cavitation and aeration occurring in the pump.

1. Select Volumes in the Geometric Entities Panel.
2. Select Total Gas Volume Fraction from Derived Variables drop-down list under Variable option in the Results Panel (see, Figure 6.396).

´	Note:  Changes to the display, such as legend, contour color, image sizing, transparency can be made under the View Tab of Properties Panel.

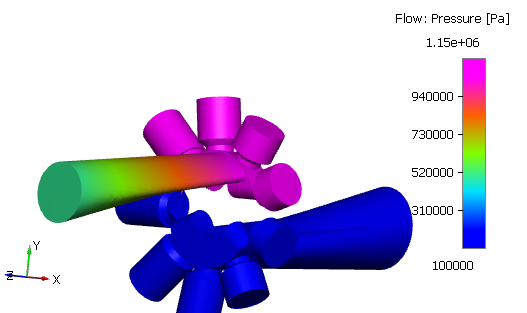

Figure 6.395 - Pressure contours

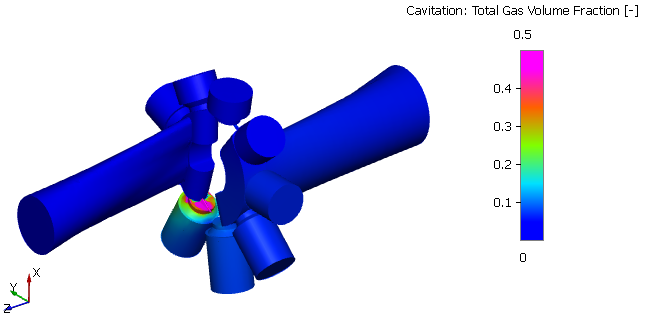

Figure 6.396 - Gas Volume fraction contours
