Simulation

This section explains the settings to run the radial piston pump simulation.

Create Monitoring Points

Monitoring points are created at the at the inlet, outlet and one of the cylinder pockets. The steps to create the monitoring points are as follows :

1. On the Geometric Entities Panel toolbar, click three times Create a Monitoring Point icon, to create Points Point 01 to Point 03.
2. Rename the Points and specify their Position values as shown in Table 6.17 in the Geometry Tab of Properties Panel (see, Figure 6.391).


Points	Rename as	Position values
Point 01	Inlet_point	0, -0.005, -0.08
Point 02	Outlet_point	0, 0.01, 0.04
Point 03	Cylinder_point	-0.04, 0, 0

Table 6.17 - Rename monitoring points

´	Note: Monitoring points need to be created before running the simulation for recording data (see, Figure 6.392). The position of a Points may also be dragged to a new location using the Select icon in Toolbar and the Left Mouse Button.

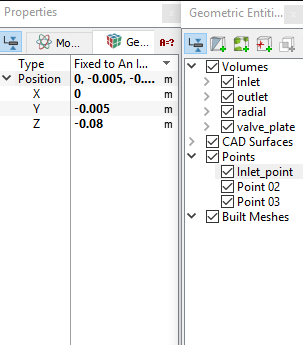

Figure 6.391 - Create monitoring point

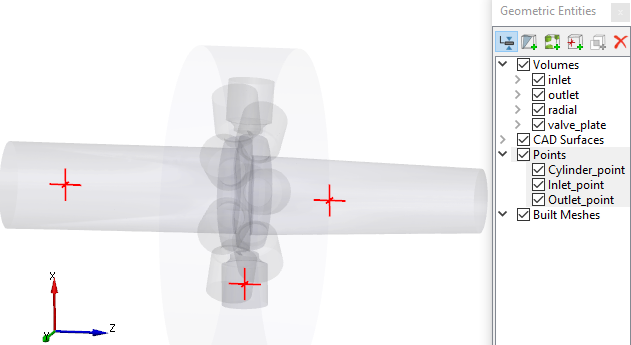

Figure 6.392 - Monitoring points



Simulation Settings

1. Click Simulation Panel.
2. Define Number of Iterations and Result Saving Frequency to 50 and 360. The Number of Revolutions, Simulation Time (Duration) and the Number of Time Steps are automatically preset by the Radial Pistons module (see, Figure 6.393).
3. After you save the project, click Start to run the simulation.
4. The result files are saved as .sres in the working folder (Example : "radialpistonpump_360.sres"). The number of result files depends on the Result Saving Frequency

Note: The Result Saving Frequency option in the Simulation Panel is set to a small value (say 5 or 10) before running the simulation to obtain better animations.



The residuals are displayed under the Residual Tab in the Plot Panel (see, Figure 6.394).

Figure 6.393 - Simulation settings

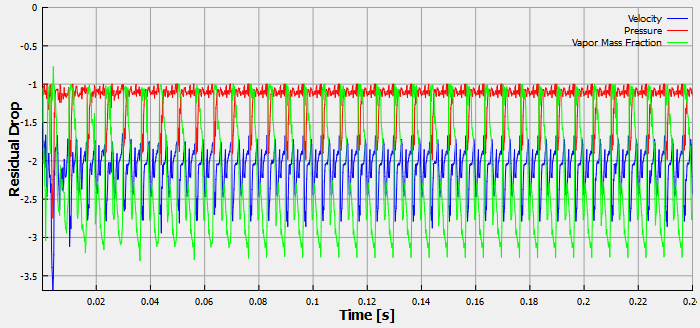

Figure 6.394 - Residuals - Radial piston



Note: The default Converge Criterion is 0.1 for Transient simulations. When the residuals for all the variables drop by one order or the maximum Number of Iterations is reached, the calculation proceeds to the next time-step.
