6.12.3 Model

This section describes the operating parameters for the rolling piston compressor model and conditions specified for the Boundaries and Volumes.

The Rolling Piston module is automatically added in the Model Panel (see, Figure 6.681), when the rolling piston mesh is generated using the Rotor Template Mesher. The parameters under Rolling Piston module are accessed as follows:

Model Panel > Rolling Piston

Properties Panel > Model Tab

Setup Options

This allows the user to specify the operating parameters in either:

Template Mode: Serves as a “wizard” in setting up a problem, but with the restriction that not all options are visible.
Extended Mode: Provides full access to all the operating parameters relevant to the module.

Switching between Template Mode or Extended Mode does not alter any parameter related to Rolling Piston Compressor module. It only changes the accessibility for other advanced settings (numerics or boundary condition related) in other modules. As such, the user is free to go back and forth during the problem set-up.

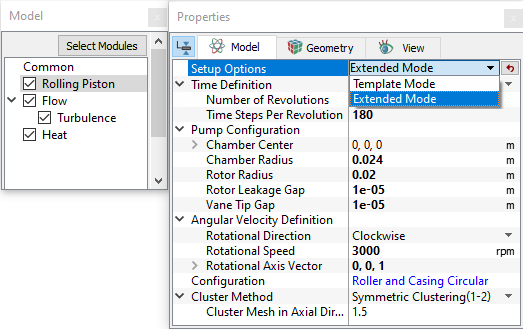

Figure 6.681 - Model and Setup options-Rolling piston

Reference Pump

This determines which template controls the Time Definition, when there is an additional compressor or valve template as part of the simulation. This option is active only when there are multiple templates in the simulation.

Note: Only one template can be set as the Reference. The others are reset to No.

On defining the above settings, further parameters are defined under:
