Problem Overview

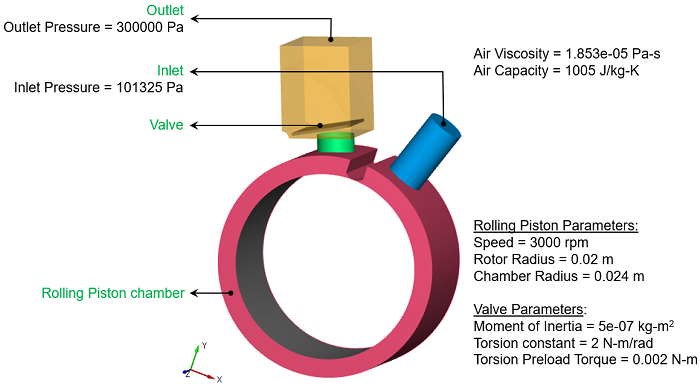

The rolling piston compressor setup consists of a rotor chamber that compresses air and operates a circumferential valve, through which the air reaches the outlet. The pressure at the inlet and outlet are 101325 Pa and300000 Pa respectively. Figure 6.687 shows the geometry and conditions for the rolling piston compressor with valve simulation.



To know how to setup and perform a circumferential valve simulation using Simerics-MP+, refer Circumferential Valve tutorial.
