Problem Overview

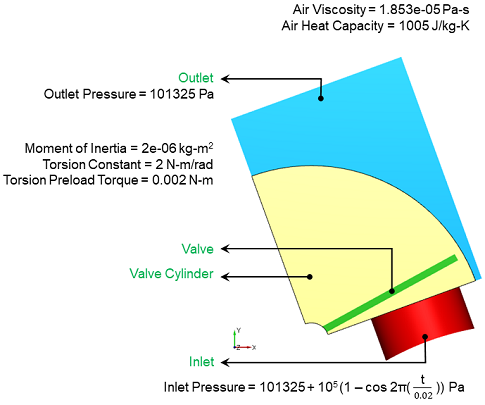

The circumferential valve consists of an Inlet Port, Valve and an Outlet. The inlet pressure oscillates with an amplitude of 100000 Pa, with a peak-to-peak period of 0.02 seconds (s) (frequency of 50 Hz). The outlet is exposed to atmosphere. Figure 6.569 shows the geometry and conditions for the circumferential valve simulation.
