Problem Overview

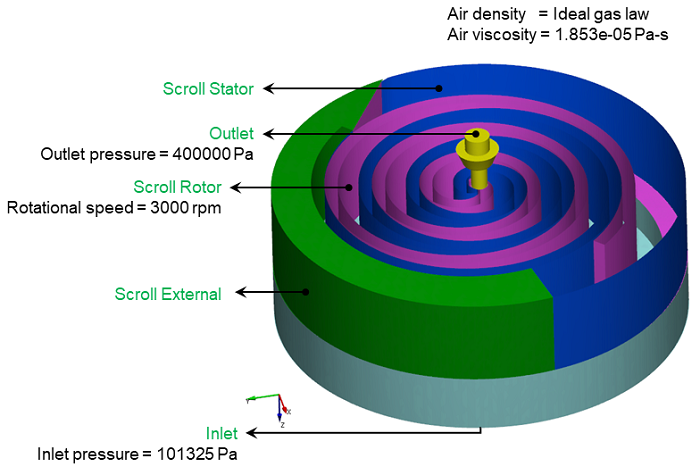

The scroll compressor consisting of an Inlet, scroll rotor, scroll external and outlet. Air enters the compressor at a pressure of 101325 Pa and leaves at a pressure of 400000 Pa. The compressor is operated at 3000 rpm. Figure 6.804 shows the geometry description and conditions for the scroll compressor simulation.
