Problem Overview

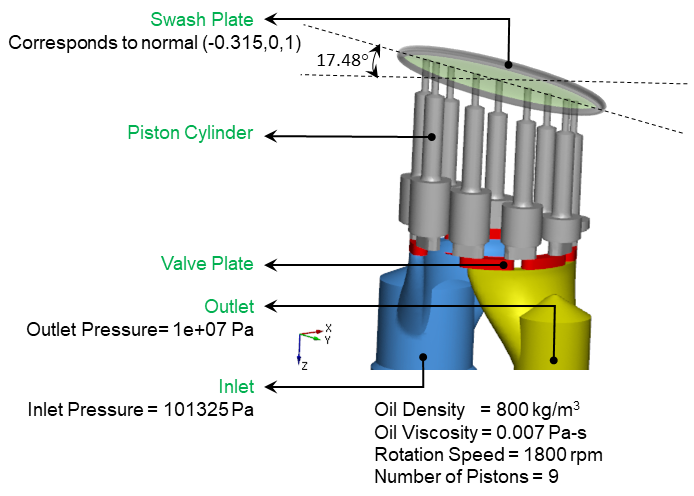

The swash plate piston pump consists of an Inlet, Outlet, Pistons and the valve plate. Oil enters the pump at a pressure of 101325 Pa and leaves at a pressure of 1e+07 Pa. The pump is operated at 1800 rpm. Figure 6.420 shows the geometry and conditions for the swash plate piston pump simulation.
