Problem Overview

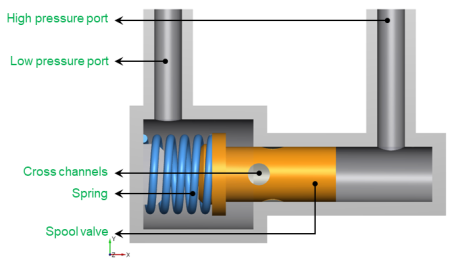

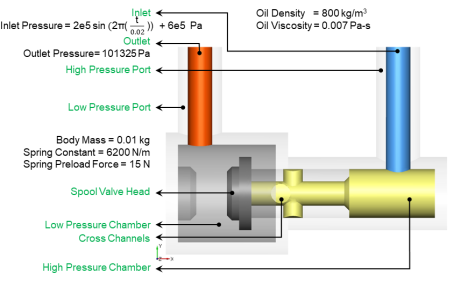

The spool valve setup consists of high and low pressure ports, high and low pressure chambers and the valve with cross channels. The inlet pressure oscillates with an amplitude of 200000 Pa, with a peak-to-peak period of 0.02 seconds (s) (frequency of 50 Hz). The pressure at the outlet is 101325 Pa. Figure 6.527 shows the solid surfaces making up the spool valve setup and Figure 6.528 shows the geometry and conditions for the spool valve simulation.
