Problem Overview

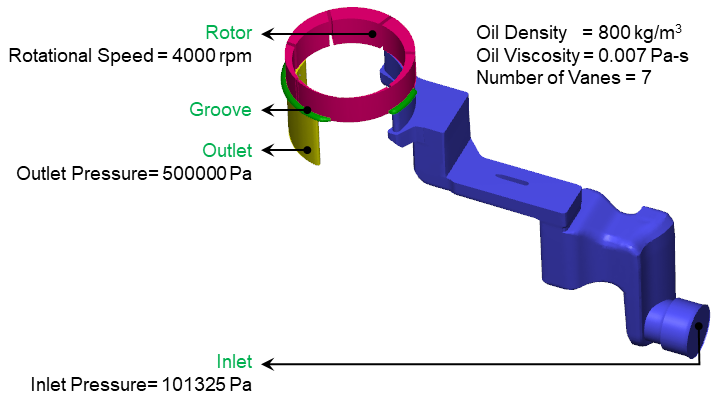

The vane pump consists of an Inlet, Chamber, Grooves and an Outlet. Oil enters the pump at a pressure of 101325 Pa and leaves at a pressure of 500000 Pa. The pump is operated at 4000 rpm. Figure 6.219 shows the geometry and conditions for the vane pump simulation.
