Contours

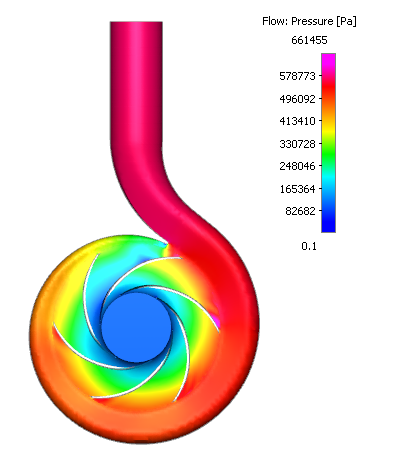

Pressure Contours

1. Select all Volumes in the Geometric Entities Panel.
2. Select Pressure from the Derived Variables list under Variable drop-down list in the Results Panel.

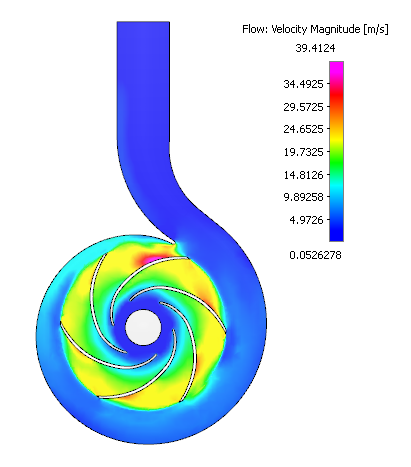

Velocity Magnitude Contours

A section is created with the following steps:

1. Click Create a Cross-Section icon  in the Geometric Entities Panel. A new section Section 01 is created under Derived Surfaces.
2. Select Section 01 under Derived Surfaces and specify the Type and Position as Plane Y and 0 m in the Geometry Tab of Properties Panel.

To plot the velocity magnitude contours:

1. Select Section 01 under Derived Variables in the Geometric Entities Panel.
2. Select Velocity Magnitude from the Derived Variables list under the Variable drop-down list in the Results Panel.
