Specifying GT Coupling settings

The GT Coupling is established with the following steps

1. Select GT Coupling in the Model Panel.
2. Ensure GT Version is set to v2020. The GT-SUITE version should be selected correctly as the GT-SUITE files are version specific, a file generated by GT2019 cannot be opened by GT2020.
3. Select GT Library Option to Auto Detect and Preferred GT License to GTSUITE.
4. Enter the name of the GT-SUITE project file, BlockMix-V2020.gtm with the extension (*.gtm) under GT File Name. This file is placed in the same directory as the *.spro file. When prompted to load the GT-SUITE project as shown in Figure 10.104, choose Yes.





   Figure 10.104 - GT File Load message

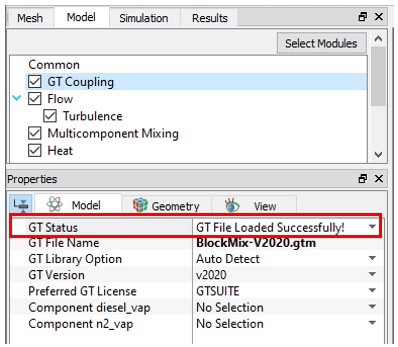

5. Once the file is successfully loaded, GT Status would update to reflect as shown in Figure 10.105.





   Figure 10.105 - Loading GT File
