Time Definition

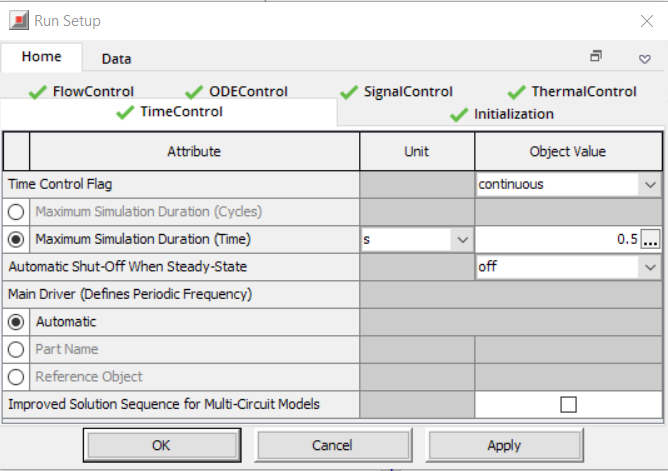

To specify the time definition for the simulation, click the Run Setup
icon and follow the steps below as shown in Figure 10.99
- Select the TimeControl tab in the Run Setup dialog box.
- Specify Time Control Flag as continuous.
- Specify Maximum Simulation Duration (Time) as 0.5s.

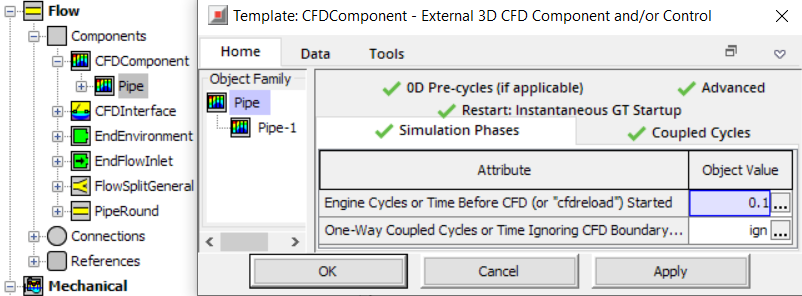

To specify the time for which the complete 1D simulation is run before the start of the coupled simulation, follow the steps below as shown in Figure 10.100.
- Select the Pipe-1 under Flow – Components – CFDComponent.
- Select the Simulation Phases tab in the External 3D CFD Component and/or Control dialog box.
- Specify Engine Cycles or Time Before CFD (or “cfdreload”) Started as 0.1 s . This indicates that the complete 1D simulation runs for 0.1s before switching to the coupled simulation.
