Plots

This section shows some of the common plots used in the simulation. The steps to create the plots are:

1. Click Load Results in the Simulation Panel.
2. Select the required result file from the Load Results dialog box, click Open.

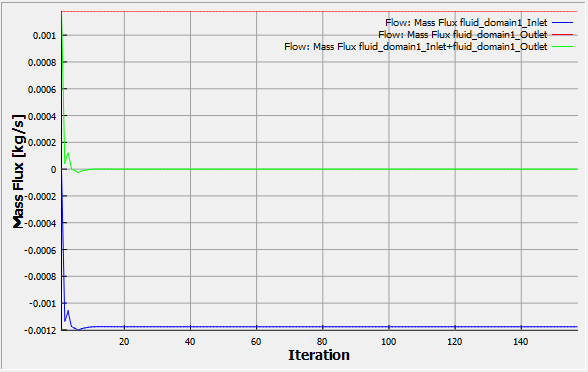

Mass Flux

The mass balance is monitored with the mass flux plots.

1. Select fluid_domain_Inlet and fluid_domain_Outlet under Boundaries in the Geometric Entities Panel
2. Click Add XY-Plot icon in the Toolbar.
3. Click Click for Variable List icon in the Plot Panel toolbar, select Mass Flux under Flow.
4. Click Plot Selected Variables icon.
5. Click on Combine Entity Data into a Single Curve icon to obtain the net mass flux.

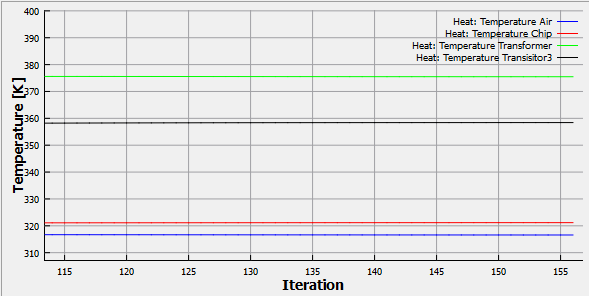

Temperature

1. Select all points under Points in the Geometric Entities Panel.
2. Click Add XY-Plot icon in the Toolbar.
3. Click Click for Variable List icon in the Plot Panel toolbar, select Temperature under Heat.
4. Click Plot Selected Variables icon in the Plot Panel toolbar.
