11.12.1 Problem Overview

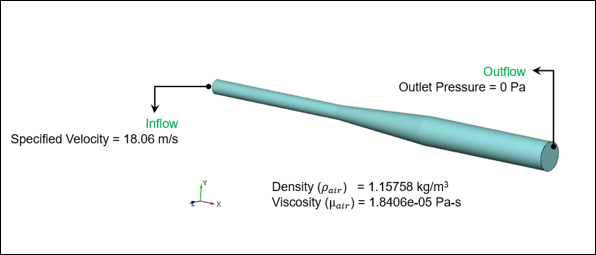

This tutorial simulates the turbulent flow in a diffuser. The air enters at a velocity of 18.06 m/s and exit at 0 Pa. Figure shows the geometry and conditions for the turbulent flow in a diffuser simulation. Figure 11.255 shows the geometry description and conditions and Figure 11.256 shows the schematic diagram for the turbulent flow in a diffuser simulation.
