11.7.1 Problem Overview

This tutorial simulates the mixing of three components Methane (CH4), Water (H2O) and Oxygen (O2) in a converging-diverging nozzle. Figure 11.149 shows the geometry and conditions for the multi-component mixing simulation.

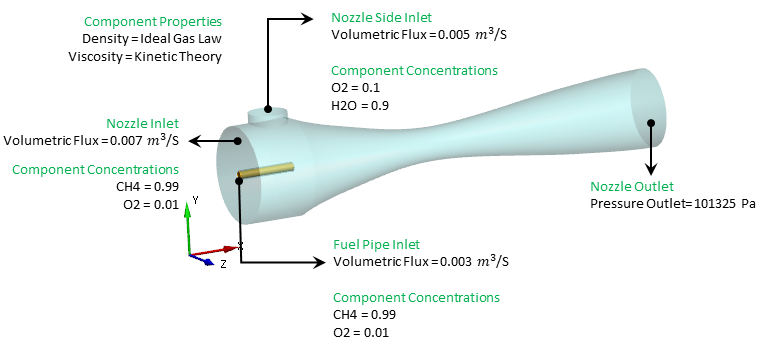

Figure 11.149 - Problem overview - Multicomponent mixing
