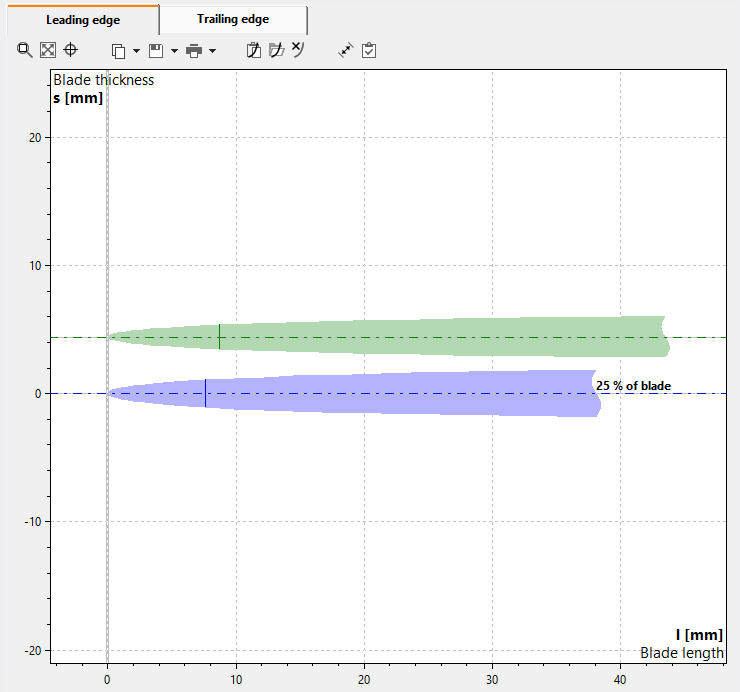

If the complete thickness distribution including leading or trailing edge was already designed in the Blade profile dialog, then the Edge position (transition from blade edge to blade suction/pressure side) has to be defined only.

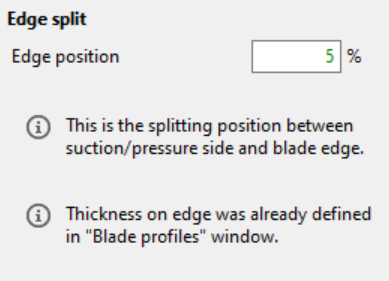

In panel Edge split the transition from the blade edge to the suction/pressure side can be defined.
|
Position in % of the straight blade length. The leading edge should be within the range of 0% to 15%, the trailing edge between 85% and 100%. |
