Computational domain

This section explains the CAD geometry considered for the simulation. The fluid computational domain consists of gear, casing, inlet and outlet. The CAD Surfaces imported into Simerics-MP+ are shown in in the Figure 10.14.

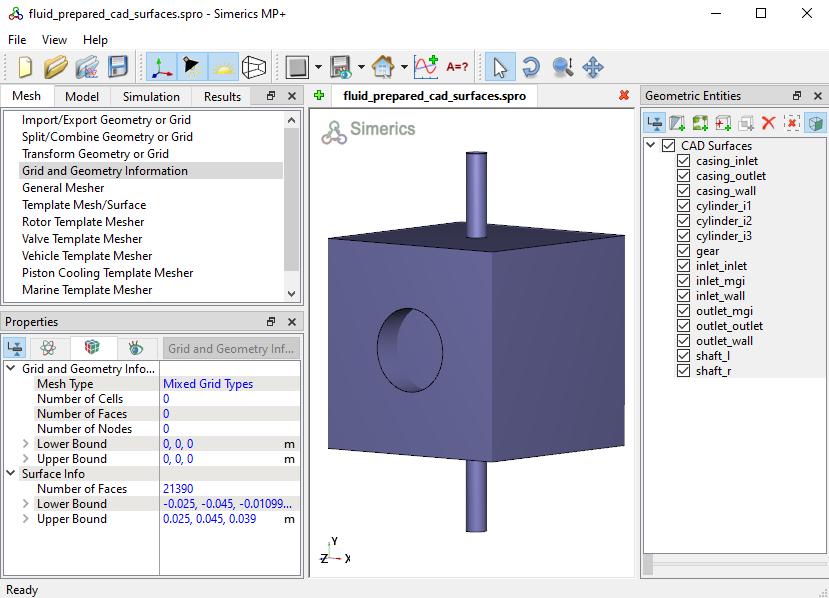

Figure 10.14 - CAD surfaces of Fluid model
