Computational domain

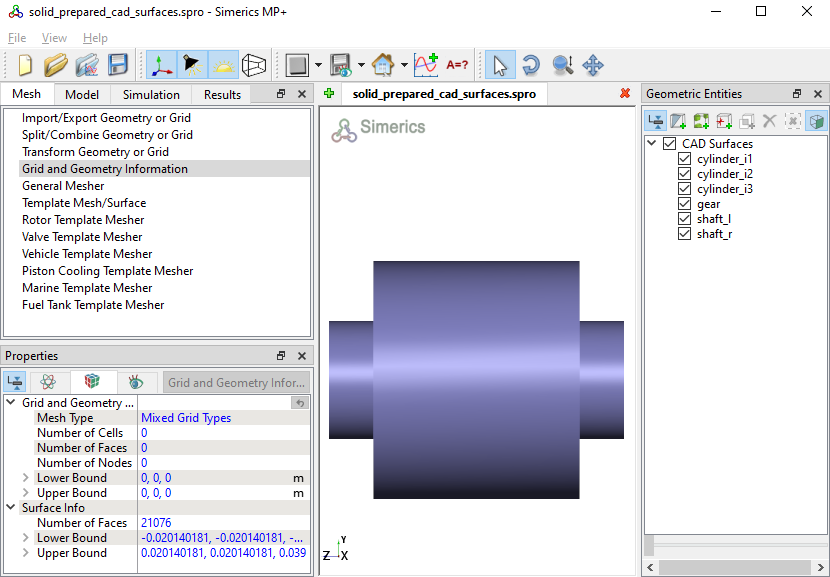

This section explains the CAD geometry considered for the simulation. The computational domain consists of gear and shaft. All the surfaces required to assign for boundary condition and interfaces are already split and renamed. The CAD Surfaces imported into Simerics-MP+ are shown in in the Figure 10.30.
