6.16.3 Model
Setup Options
This allows the user to specify the operating parameters in either:
-
Template Mode: Serves as a “wizard” in setting up a problem, but with the restriction that not all options are visible to the user.
-
Extended Mode: Provides full access to all the operating parameters.

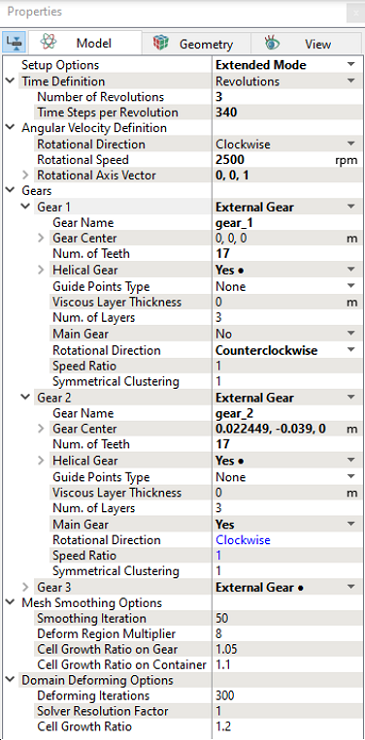

Figure 6.904 - Model and Setup options - General Gear
On defining the above settings, further parameters are defined under:
