Fluid Component in CFD model

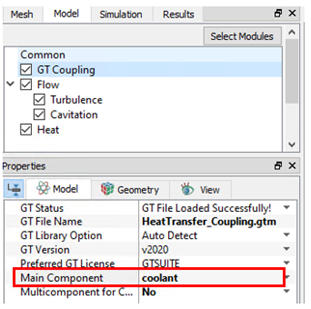

In Simerics-MP+, we assign the CFDSpecies coming from GT-SUITE as the Main component. This is done by the following steps as shown in Figure 10.127.

1. Select GT Coupling in the Model Panel.
2. Select No for Multicomponent for Cavitation. This selection appears because the Cavitation module is activated for the 3D centrifugal pump simulation.
3. Select coolant for Main Component.
