Plots

This section shows some of the common plots used in the Natural convection simulation. The steps to create the plots are:

1. Click Load Results in the Simulation Panel.
2. Select the required result file in the ensuing Load Results dialog box, click Open.

Temperature at monitoring points

1. Select the points Point 01, Point 08 and Point 10 under Points in the Geometric Entities Panel.
2. Click Add XY-Plot icon in the Toolbar.
3. Click Click for Variable List icon in Plot Panel toolbar, select Temperature under Heat.
4. Click Plot Selected Variables icon in Plot Panel toolbar.

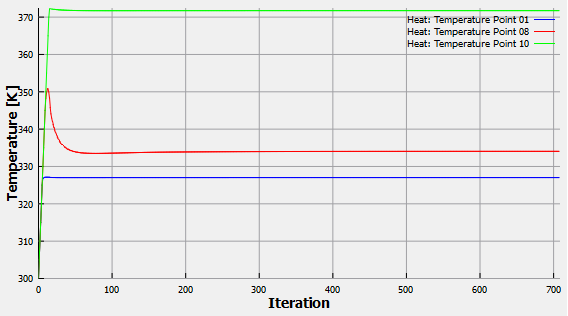

Figure 11.215 - Temperature at monitoring points
