Validation

The temperature prediction along the radial direction on both the upper and lower symmetry walls are compared with experimental data from Kuehn & Goldstein.

The comparison between experiments and Simerics-MP+ are shown below.

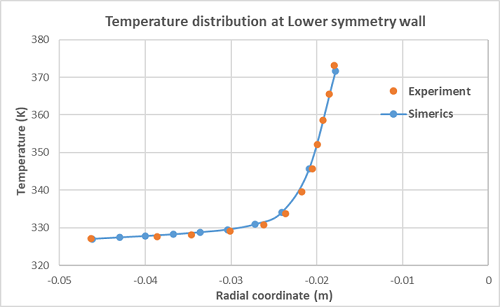

Figure 11.217 - Temperature distribution at lower symmetry wall

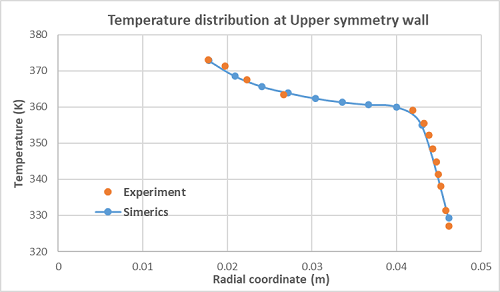

Figure 11.218 - Temperature distribution at upper symmetry wall



The following image shows the comparison of the temperature distribution observed in experiments for natural convection in a concentric annulus with the temperature contours obtained from Simerics-MP+.

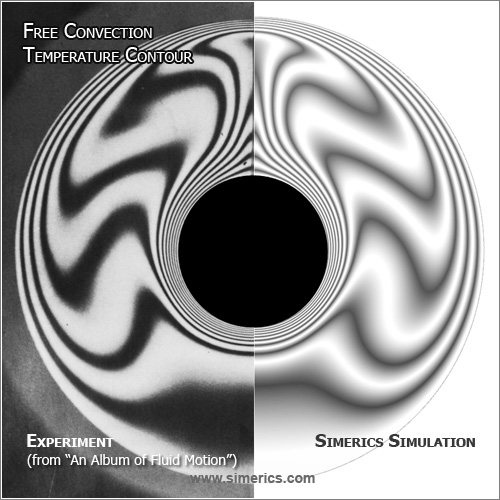

Figure 11.219 - Comparison between experiments and simulation (Source: Milton Van Dyke, "An album of fluid motion")



Note: The comparison of temperature distribution shown in Figure 11.219 is performed for a similar concentric annulus case, but with a different diameter ratio .



Reference:T.H. Kuehn, R.J. Goldstein, “An Experimental Study of Natural Convection Heat Transfer in Concentric and Eccentric Horizontal Cylindrical Annuli”, Journal of Heat Transfer, Vol 100, pp. 635-640, 1978.
