11.14.1 Problem Overview

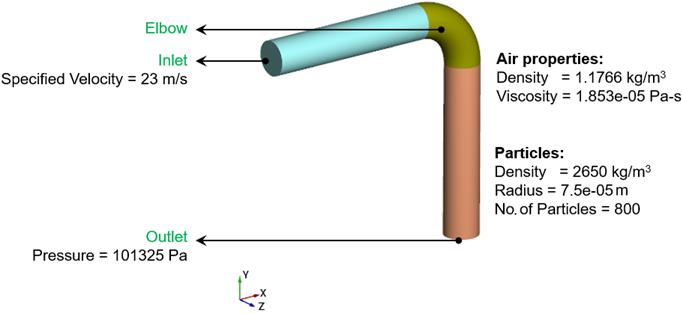

The objective of this simulation is to study the erosion characteristics, wear distribution and particle flow characteristics in the elbow. Air enters the inlet at a velocity of 23 m/s along with particles. The geometry and conditions for the simulation are shown in Figure 11.299.
