4.1.4 Grid and Geometry Information

Grid and geometry information provides quantitative information on the mesh and surface entities in the model.

Geometry and Grid Information: Gives information of the Mesh Type, Number of Cells, Number of Faces, Number of Nodes and mesh dimensions ( Lower Bound and Upper Bound). Surface Info: Gives information of the geometry size ( Number of Faces). Lower Bound and Upper Bound indicate the minimum and maximum coordinates of the geometry.

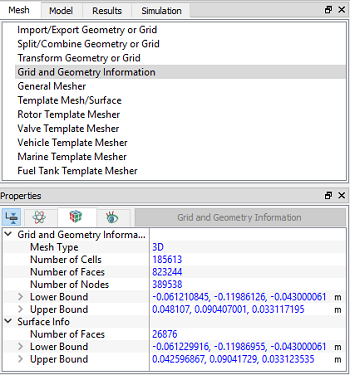

Figure 4.14 - Grid and Geometry Information
