Plots

The following plots are obtained using the Plot option for the displacement hull.

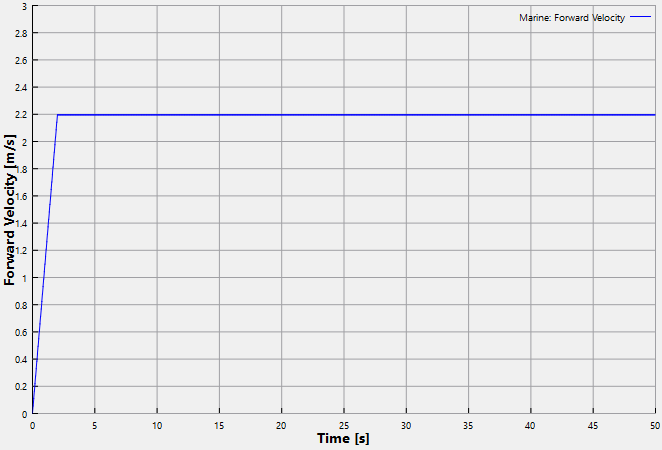

Velocity curve

To obtain the plot for forward velocity:

• Select Marine in the Model Panel.
• Click Add XY-Plot icon in the Toolbar.
• Click Click for Variable List icon in Plot Panel and select Forward Velocity from the list.
• Click Plot Selected Variables icon.

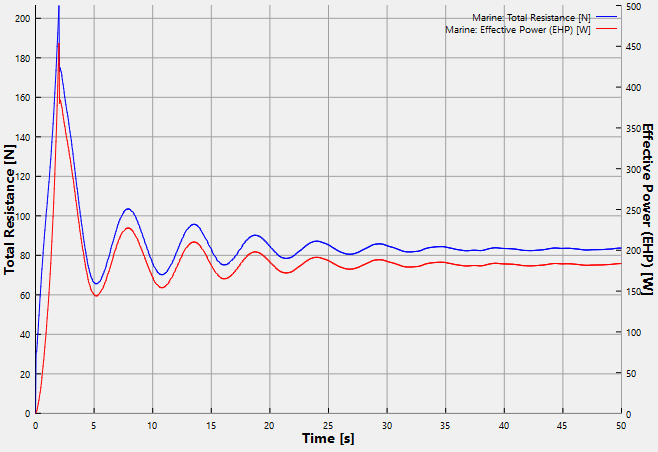

Power-Resistance curves

To obtain the plot for power and resistance:

• Select Marine in the Model Panel.
• Click Add XY-Plot icon in the Toolbar.
• Click Click for Variable List icon in Plot Panel, select Total Resistance from the list.
• Click Plot Selected Variables icon.
• Click Click for Variable List icon and select Effective Power from the list.
• Click Plot Selected Variables .

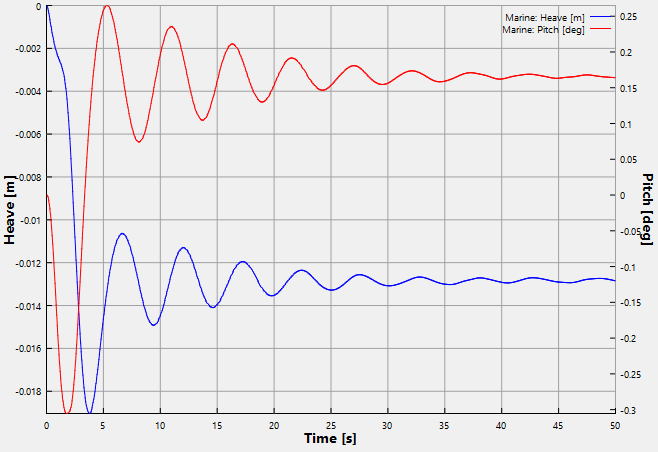

Heave & Pitch curves

To obtain the plot for heave and pitch:

• Select Marine in the Model Panel.
• Click Add XY-Plot icon in the Toolbar.
• Click Click for Variable List icon in Plot Panel toolbar, select Heave in the list.
• Click Plot Selected Variables icon in the bottom left of Plot Panel.
• Select Pitch in the same list.
• Click Plot Selected Variables icon.
