Contours

The temperature contours is obtained from the results of the mixing pipe of PID controller simulation for the entire domain. The steps to create contours are:

1. Click Load Results in the Simulation Panel.
2. Select the pid_controller.sres result file in the ensuing Load Results dialog box, click Open.

Temperature Contours

1. Select all Volumes in the Geometric Entities Panel.

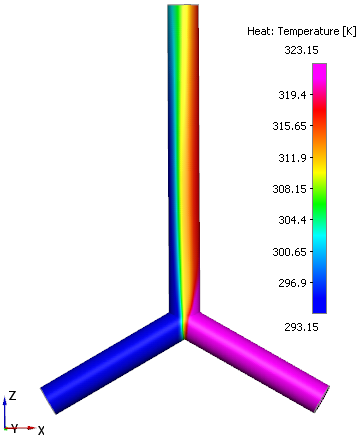

2. Select Temperature from the Variables list under Variable drop-down list in the Results Panel (see, Figure 10.77). For variables and legends refer, Post-Processing.

Note: Changes to the display, such as legend, contour color, image sizing, transparency can be made under the View Tab of Properties Panel.
