5.13 Acoustics

Acoustic module in Simerics-MP/ Simerics-MP+ is used for the simulation of generation and propagation of sound waves in the flow domain. In this section, the parameters and settings of acoustic module are discussed in detail. A tutorial on propeller demonstrating the steps to use Acoustic module is also available.



To activate the Acoustic module: Click Select Modules in the Model Panel. The Physical Model Selection dialog box opens. See, Figure 5.281. Select Acoustic module under Available Modules and click Add.

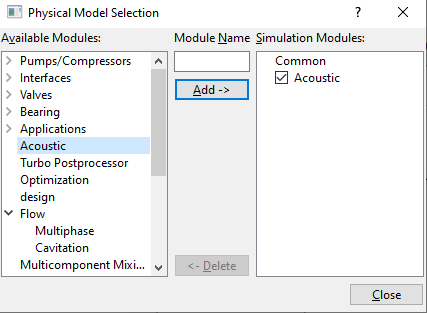

Figure 5.281 - Acoustic module



The Acoustic module is explained as follows:

• Module Parameters: Parameters used in Acoustic module.
• Conditions: Boundary/Volume conditions used in Acoustic module.
• Output Variables: Outputs from the Acoustic module.



´	Note: Multiple Acoustic modules with different settings can be added to the same project.
