8.2.2 Model

This section describes the operating parameters for the propeller model and conditions specified for the Boundaries and Volumes. To add Propeller module, click Select Modules in the Model Panel

The parameters under Propeller module is accessed as follows:

Model Panel > Propeller

Properties Panel > Model Tab

Setup Options

This provides the option to specify the operating parameters in either:

  • Template Mode-Serves as a wizard in setting up a problem, but with the restriction that not all options are visible to the user.
  • Extended Mode-Provides the full access to all the operating parameters

Switching between Template Mode or Extended Mode does not alter any parameter related to Propeller module. It only changes the accessibility for other advanced settings (Numerics or boundary condition related) in other modules. As such, the user is free to go back and forth during the problem set-up.

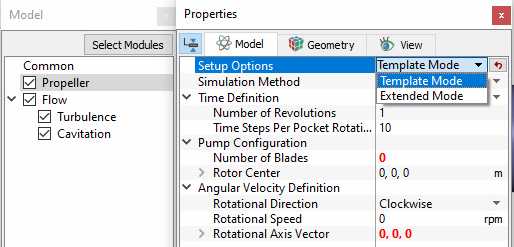

Figure 8.79 - Model and Setup options-Propeller

Once the above parameters are specified, further parameters are described under:
