Setting up the model

This section describes step-by-step, the definition of the computational domain and the physics for the planing hull simulation.

Importing the Geometry

The first step is to import the geometry or surfaces.

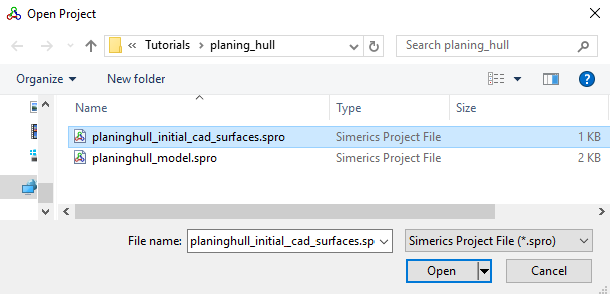

1. Select File > Open. The file planinghull_initial_cad_surfaces.spro is selected from the working directory in the Open Project dialog box, click Open.

Scaling the Geometry

The default dimension for importing the geometry is meter(m). Hence the dimensions need to be checked once the import is made. The CAD dimensional information can be verified by clicking Grid and Geometry Information under the Mesh Panel. If a scaling is to be done from millimeters (mm) to metres (m), the following steps are used:

1. Select Transform Geometry or Grid in the Mesh Panel.
2. In the ensuing Properties Panel, set Scaling From as Millimeter and Scaling Factor as 0.001,0.001,0.001.
3. Click Scale.

After the CAD is imported, the steps involved in setting up the model are:

• Computational domain: In the case of a marine simulation, the flow is external and has to be solved around the structure of the ship. Hence the computational domain is created around the ship surface that is in contact with the water.
• Building the Mesh: Once the domain is selected, a grid of sufficient resolution is created to solve the flow around the vessel.
• Defining Physics: Defining the physics and the conditions for the problem.
