Problem Overview

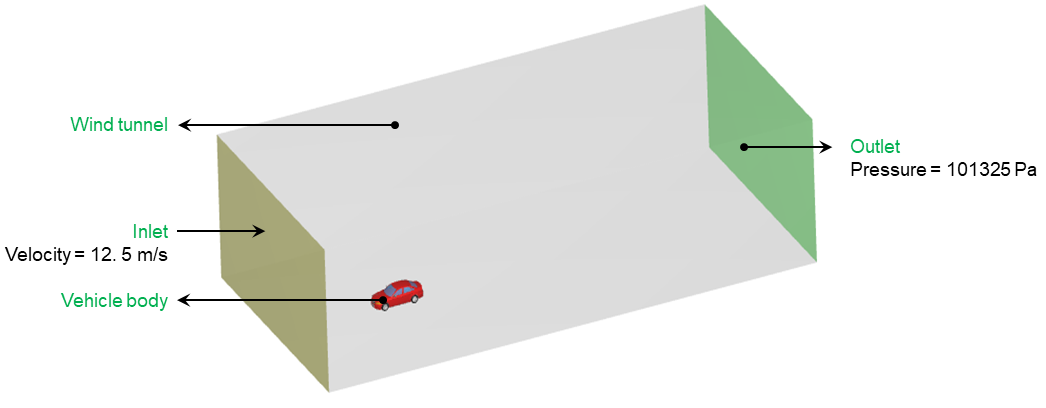

This tutorial explains the steps to perform front end air flow simulation and post process the results. The vehicle body is placed in the wind tunnel with a cross sectional area 1.5 times more than the vehicle body. The air enters into the wind tunnel at a velocity of 12.5 m/s and leaves at a pressure of 101325 Pa. The Figure 7.41 shows the geometry and conditions for the vehicle in the wind tunnel.
