Setting up the model

This section describes step-by-step, the definition of the computational domain, mesh and the physics for the cavitation over an sharp-edged orifice.

The first step is to import the geometry or surfaces.

Select File > Open.

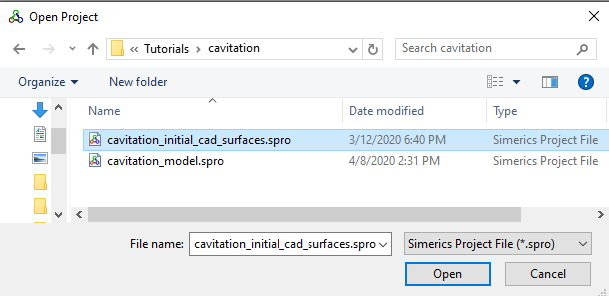

Select the file cavitation_initial_cad_surfaces.spro from the tutorial directory in the Open Project dialog box, click Open.

Figure 11.238 - Import the geometry for simulation

Note: To import .STL file refer to Import/Export Geometry or Grid.

The steps involved in setting up the model are:

Computational Domain: In the case of a cavitation simulation, the computational domain is the internal flow domain.
Building the Mesh: Once the domain is selected, a grid of appropriate resolution is created to solve the problem.
Defining Physics & Conditions: Defining the physics and the conditions for the problem.
