Setting up the model
This section describes step-by-step, the definition of the computational domain, mesh and the physics for the scroll compressor simulation.
Importing the Geometry
The first step is to import the geometry or surfaces.
- Select File > Open.
- Select the file scroll_initial_cad_surfaces.spro from the Open Project dialog box and click Open.

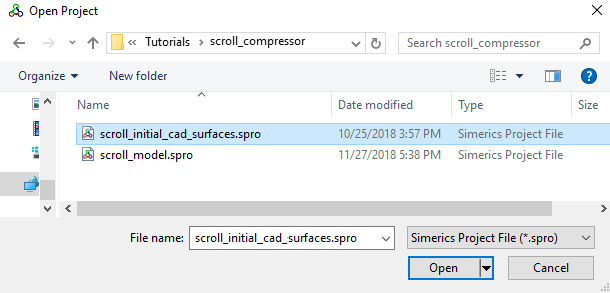

Figure 6.805 - Importing the geometry
| ´ | Note: To import .STL file refer to Import/Export Geometry or Grid. |
The steps involved in setting up the model are:
- Computational Domain: In the case of a scroll compressor simulation, the computational domain is the internal fluid domain of the pump.
- Building the Mesh: Once the domain is selected, a grid of sufficient resolution is created to solve the flow.
- Defining Physics & Conditions: Defining the physics and the conditions for the problem.
