Operating Parameters

The operating parameters pertaining to the Ball Valve template involve the dynamics, valve configuration settings and other advanced/extended settings (see, Figure 6.604).

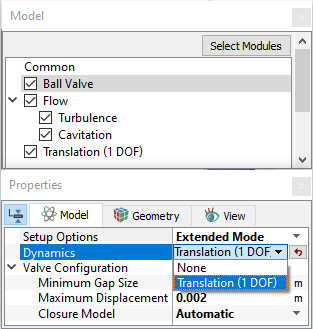

Figure 6.604 - Ball valve model-Operating parameters

Dynamics

This allows linking the valve model to an activated Translation (1 DOF) model which enables access to the Dynamics module that dictates the valve motion (as a function of time). The valve module has to be always associated with Translation (1 DOF) for motion of the valve. Multiple, physically unconnected Valves should be modeled with separate valve modules and should be linked to separate Dynamics modules.

Valve Configuration

This allows the user to specify valve parameters. The parameters Minimum Gap Size , and Maximum Displacement are specified under this category is described in Mesher.

Closure Model

This model enables the simulation of a valve closing completely, without having to compress the corresponding mesh volumes to zero. The available options from the drop-down list are:

Automatic: Automatic valve closure works when the valve and valve end surfaces are not parallel.

Specified Radial Position: When the valve and valve end surface are parallel, the valve closure is decided by the radius value. The radius should be lying in the valve closure region.

This model progressively blocks the flow in the mesh cells between the valve face and valve end as valve position falls below the Minimum Gap Size.
The valve position is determined by Dynamics module.
Full closure corresponds to when the displacement value determined by Dynamics module is zero.
